Outdoor Led Lights Ip65 Gas Station Chemical Workshop Explosion Proof Lamp 120w
Подробная информация о продукте:
| Место происхождения: | Китайский материк |
| Фирменное наименование: | Finboard |
| Сертификация: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Номер модели: | SMSF50-B |
Оплата и доставка Условия:
| Количество мин заказа: | 10 шт |
|---|---|
| Цена: | Подлежит обсуждению |
| Упаковывая детали: | Коробка с пакетом + пузырь или на заказ |
| Время доставки: | 25-30days или подтвердить |
| Условия оплаты: | T/T, Western Union |
| Поставка способности: | 5000 шт./Месяц |
|
Подробная информация |
|||
| Ключевые слова: | Светодиодные осветительные приборы для железнодорожных платформ | Коэффициент мощности: | ≥0.95 |
|---|---|---|---|
| Светящийся поток: | 3900-7800lm | Уровень защиты: | IP65 |
| Цветовая температура: | 2700-6500K | Индекс цветового рендеринга: | 80ra |
| Трудовая жизнь: | ≥50000H | Исполнительные стандарты: | GB7000, GB 24906, GB/T 24907 и т.д. |
| Выделить: | IP65 explosion proof LED lamp,gas station explosion proof lighting,chemical workshop LED explosion light |
||
Характер продукции
Outdoor LED Lights IP65 Gas Station Chemical Workshop Explosion Proof Lamp 120W
Product Attributes
| Attribute | Value |
|---|---|
| Keywords | LED railway platform lighting |
| Power Factor | ≥0.95 |
| Luminous Flux | 3900-7800lm |
| Protection Level | IP65 |
| Color Temperature | 2700-6500K |
| Color Rendering Index | 80Ra |
| Working Life | ≥50000H |
| Executive standards | GB7000,GB 24906,GB/T 24907 etc. |
Product Description
Our IP65-rated LED explosion-proof lights (30W/50W/80W/120W) are engineered for extreme industrial environments, delivering unmatched safety, durability, and energy efficiency. Designed for hazardous locations (Zone 1/2, Zone 21/22), these lights are ATEX-certified and widely used in oilfields, chemical plants, gas stations, and drilling platforms. With 3-year warranty, waterproof construction, and high luminous efficiency, they provide reliable illumination in the toughest conditions.
Specification
| Feature | Specification |
|---|---|
| Model | Industrial LED Explosion-Proof Light |
| Power Options | 120W |
| Material | Aluminum Alloy + Tempered Glass |
| IP Rating | IP65 (Dustproof & Waterproof) |
| Explosion-Proof Cert. | ATEX, IECEx (Zone 1/2, 21/22) |
| Luminous Efficiency | 100-120 lm/W |
| Color Temperature | 5500-6500K (Daylight White) |
| CRI (Color Rendering) | ≥80 (True Color Visibility) |
| Input Voltage | AC 85-265V (50/60Hz) |
| LED Chip | High-Quality Lumileds/SMD 3030 |
| Lifespan | 30,000+ hours |
| Warranty | 3 Years (Extendable to 5 Years) |
| Working Temperature | -30°C to +60°C |
| Mounting Options | Bracket, Pendant, Ceiling |
Advantages
1. Superior Explosion-Proof & Weatherproof Design
- ATEX/IECEx Certified - Safe for Zone 1, Zone 2 (flammable gases) & Zone 21, Zone 22 (combustible dust).
- IP65 Waterproof & Dustproof - Resists high-pressure water jets, corrosive chemicals, and dust ingress.
- Rugged Aluminum Housing - Aircraft-grade aluminum alloy ensures heat dissipation, impact resistance, and corrosion protection.
- Tempered Glass Lens - 5mm reinforced glass prevents shattering in explosive atmospheres.
2. High-Efficiency LED Lighting for Hazardous Areas
- Bright & Uniform Light Output - 100-120 lm/W efficiency for optimal visibility in dark industrial spaces.
- Multiple Power Options (30W/50W/80W/120W) - Customizable for different workspace requirements.
- 5500-6500K Cool White Light (CRI ≥80) - Reduces eye strain and enhances safety in critical operations.
- 30,000+ Hours Lifespan - 3-5x longer than traditional HID lamps, reducing replacement costs.
3. Wide Voltage & Extreme Temperature Resistance
- Universal Voltage (AC 85-265V, 50/60Hz) - Compatible with global power grids.
- Operates in -30°C to +60°C - Ideal for Arctic oil rigs, desert refineries, and humid chemical plants.
4. Easy Installation & Low Maintenance
- UFO High Bay & Flood Light Designs - Flexible mounting (bracket, pendant, or ceiling).
- Tool-Free Modular Assembly - Quick installation without specialized labor.
- Maintenance-Free Operation - Sealed design prevents dust/water damage, minimizing downtime.
5. Trusted for Critical Industrial Applications
- Oil & Gas - Drilling platforms, refineries, pipelines.
- Chemical & Pharmaceutical - Acid-resistant lighting for labs and storage.
- Mining & Tunneling - Explosion-proof lighting in high-dust environments.
- Gas Stations & Ports - Safe illumination for fuel-handling zones.

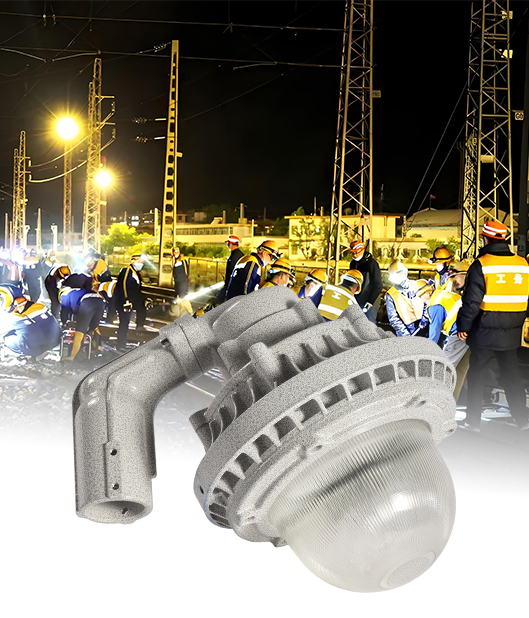

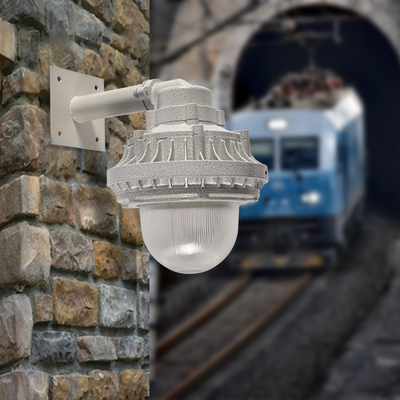

Product Images
