IP65 Waterproof Hazardous Location Lighting 30W 60W 70W 100W 120W 150W Led Explosion Proof Light
Подробная информация о продукте:
| Место происхождения: | Китайский материк |
| Фирменное наименование: | Finboard |
| Сертификация: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
Оплата и доставка Условия:
| Количество мин заказа: | 10 шт |
|---|---|
| Цена: | Подлежит обсуждению |
| Упаковывая детали: | Коробка с пакетом + пузырь или на заказ |
| Время доставки: | 25-30days или подтвердить |
| Условия оплаты: | T/T, Western Union |
| Поставка способности: | 5000 шт./Месяц |
|
Подробная информация |
|||
| Название продукта: | промышленное взрывозащищенное освещение | ВЕЛ: | SMD 3030/2835 |
|---|---|---|---|
| Легкая эффективность: | 100-120lm/w | Материал: | Алюминиевая + ПК линза |
| Напряжение: | AC85-265V | Гарантия: | 3/5 лет |
| Взрывозащитные знаки: | Exde IIC T6 Gb/Ex tD A21 IP65 T80°C | Водонепроницаемый: | IP65 |
| Лучевой угол: | 120 ° | ранг Анти--корозии: | WF2 |
| Выделить: | IP65 waterproof LED explosion proof light,hazardous location lighting 30W to 150W,explosion proof LED light with warranty |
||
Характер продукции

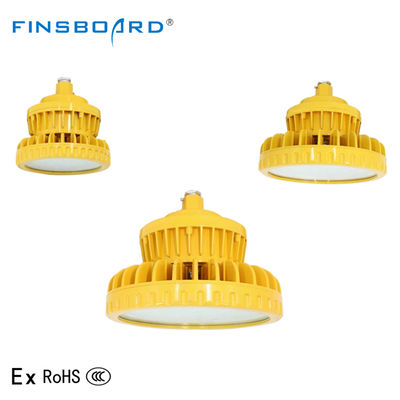

IP65 Waterproof Hazardous Location Lighting 30W-150W LED Explosion Proof Light
This series of LED Explosion Proof Lights is designed with an IP65 rating for effective waterproof and dustproof performance in harsh environments. Certified with Exd IIC T6 explosion-proof standard, it ensures safe operation in hazardous locations. Available in multiple power options (30W, 60W, 70W, 100W, 120W, and 150W) to meet various illumination needs.

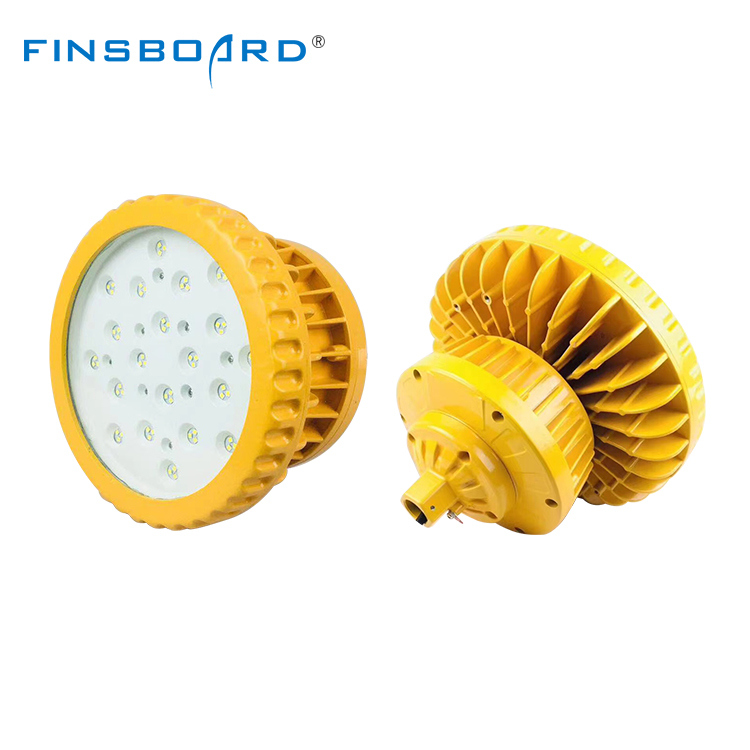

Our Explosion Proof LED Floodlight features a robust die-cast aluminum alloy housing with high-pressure electrostatic spray coating for excellent corrosion resistance. The III cavity separation structure effectively isolates the light source, power supply, and wiring, enhancing safety and reliability. With a professional secondary optical system and tempered glass lens, it provides uniform and comfortable lighting. The built-in constant current and voltage power supply ensures stable performance with a high power factor of over 0.95.
Product Specifications
| Model | RFEPL-102 | ||
|---|---|---|---|
| Power | 30-60W | 70-100W | 120-150W |
| Size (mm) | 205×190×240 | 265×203×264 | 290×220×280 |
| Material | Aluminum + Tempered Glass | ||
| Driver | 90-285VAC | ||
| Light Source | SMD | ||
| IP Rating | IP65 | ||
| CRI | Ra80 | ||
| Color Temperature | 3000-5500K | ||
| Light Efficiency | 150lm/w | ||
| Application | Hazardous Location Lighting, Chemical Industry, Gas Station, Mine | ||
Key Features
- The explosion proof LED light source cavity uses multiple LED beads with long service life and high luminous efficiency; nano-reflective cups improve luminaire efficiency
- Industrial LED light explosion proof exposed fasteners use stainless steel screws for high corrosion resistance
- Can be fitted with emergency devices (optional) to automatically switch to emergency lighting during power outages
- Tempered glass available in frosted or clear versions (flat and convex options)
Installation Options
Ceiling-mounted, boom-mounted, wall-mounted, parapet-mounted, bent-pole-mounted and other installation options available.
Applications
Designed for hazardous locations where destruction, damage or explosion may occur. Ideal for:
- Refineries and fuel storage facilities
- Remote locations and oil exploration sites
- Oil refining and chemical industry plants
- Military and other dangerous environments
- Offshore oil platforms and oil tankers
