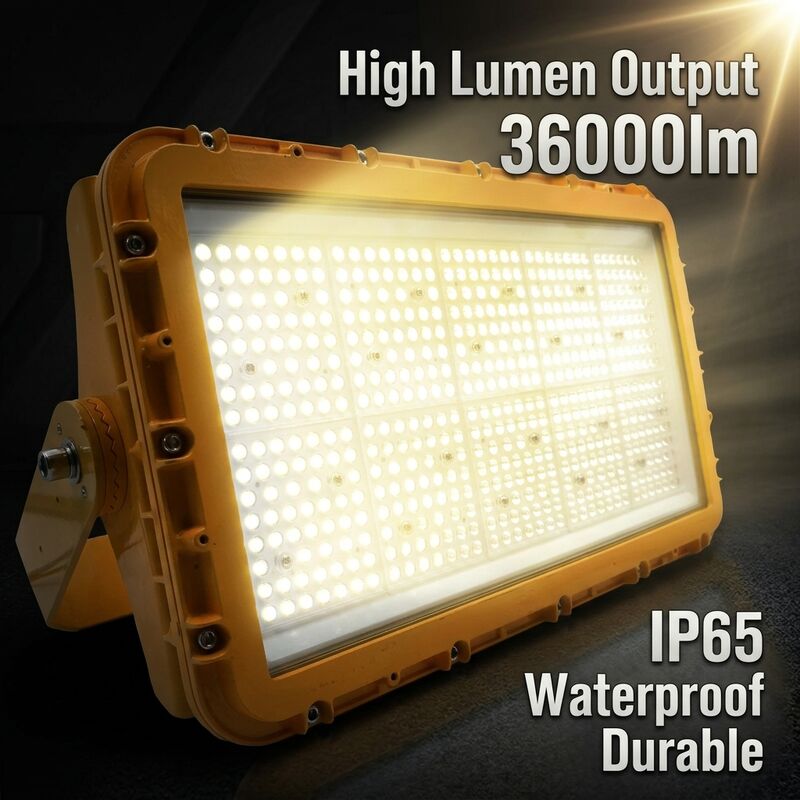

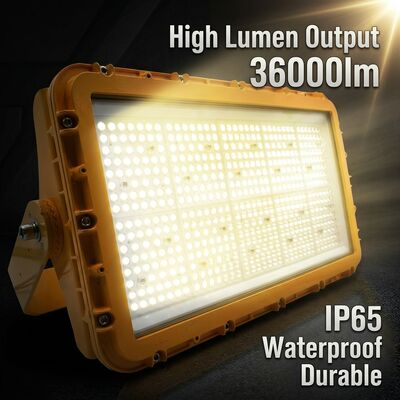

300W Explosion Proof LED Flood Light ATEX Zone 21 Zone 22 Dust Proof Anti-Static 39000lm IP66 Aluminum Lighting
Подробная информация о продукте:
| Место происхождения: | Гуандун, Китай |
| Фирменное наименование: | Fins board, BOCAQ |
| Сертификация: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Номер модели: | EPFL-300W-ПЫЛЬ |
Оплата и доставка Условия:
| Количество мин заказа: | 10 шт. |
|---|---|
| Цена: | Подлежит обсуждению |
| Упаковывая детали: | Коробка с пакетом + пузырь или на заказ |
| Время доставки: | 10-15 дней или подтвердить |
| Условия оплаты: | Т/Т, Вестерн Юнион |
| Поставка способности: | 5000 шт/месяц |
|
Подробная информация |
|||
| Власть: | 300 Вт | Световой поток: | 39000мм |
|---|---|---|---|
| Эффективность: | 130лм/Вт | Цветовая температура: | 5000K (холодный белый) |
| Угол луча: | 120° | Входное напряжение: | 100–277 В переменного тока, 50/60 Гц |
| Светодиодный чип: | Бриджлюкс СМД 3030 | IP-рейтинг: | IP66 |
| Материал корпуса: | Литой алюминий ADC12 с антистатическим покрытием | Материал линзы: | Закаленное стекло 5 мм |
| Рабочая температура: | от -40°С до +60°С | Сертификация: | ATEX II 2D Ex tb IIIC T85°C Db |
| Продолжительность жизни: | ≥50 000 часов L70 | Гарантия: | 5 лет |
| Выделить: | 300W Dust Explosion Proof,ATEX Zone 21 LED Light,Anti-Static Hazardous Lighting |
||
Характер продукции
300W Explosion Proof LED Flood Light ATEX Zone 21 Zone 22 Dust Proof Anti-Static 39000lm IP66 Aluminum Lighting
300W Explosion Proof LED Flood Light - ATEX Hazardous Area Lighting
The EPFL-300W-DUST is a 300W explosion proof LED flood light engineered for demanding industrial environments. This wide 120° floodlight provides exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 300W High Power Output - 39000lm total luminous flux with 130lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- ATEX Certified - ATEX II 2D Ex tb IIIC T85°C Db for hazardous gas and dust atmospheres
- Robust Die-Cast Aluminum ADC12 Housing - Die-cast aluminum ADC12 with anti-static coating and corrosion-resistant coating for long-term durability
- IP66 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Bridgelux SMD 3030 LEDs - Premium LED chips delivering stable 5000K (Cool White) light with excellent uniformity
- 120° Beam Angle - Optimized wide-angle light distribution for large-area coverage for industrial hazardous area applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Dust Ignition Protection - ATEX II 2D Ex tb IIIC T85°C Db certified for combustible dust atmospheres, suitable for Zone 21 and Zone 22 areas
- Anti-Static Powder Coating - Surface resistivity below 10⁹ Ω, preventing electrostatic discharge that could ignite airborne dust clouds
Applications
Ideal for hazardous classified areas including:
- Grain silos, flour mills, coal processing, and combustible dust environments
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-300W-DUST |
|---|---|
| Power Consumption | 300W |
| Luminous Flux | 39000lm |
| Efficacy | 130lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 120° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 with Anti-Static Coating |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -40°C to +60°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | ATEX II 2D Ex tb IIIC T85°C Db |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
