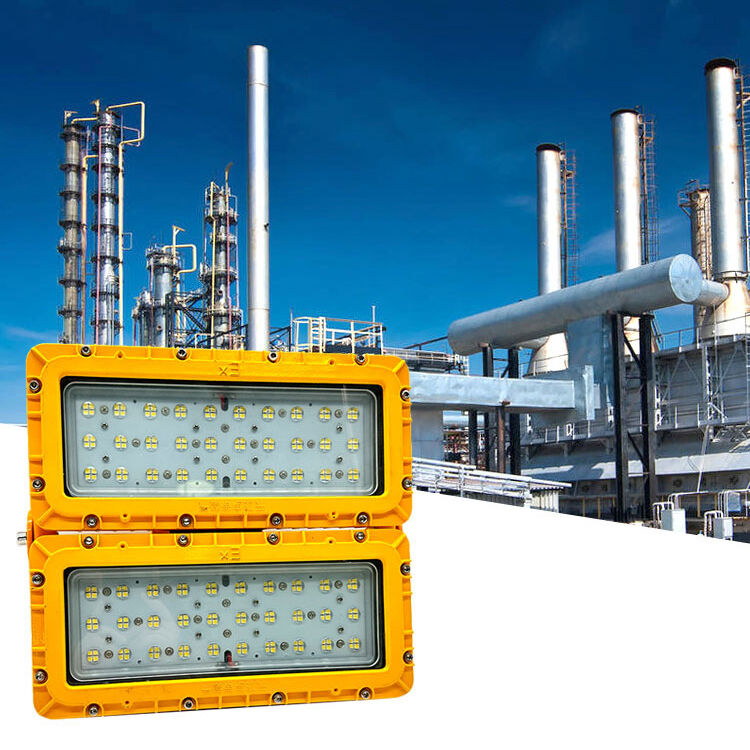

300W LED Explosion Proof Flood Light 60° Wall Mount Process Pipe Rack Yellow ATEX IIB T6 IP65 RFEPL8280 Lighting
Подробная информация о продукте:
| Место происхождения: | Гуандун, Китай |
| Фирменное наименование: | ECER |
| Сертификация: | ATEX Ex db mb IIB T6, CE, ROHS, CCC |
| Номер модели: | RFEPL8280-300W-WL60 |
Оплата и доставка Условия:
| Количество мин заказа: | 10 шт. |
|---|---|
| Цена: | Подлежит обсуждению |
| Упаковывая детали: | Коробка с пакетом + пузырь или на заказ |
| Время доставки: | 10-15 дней или подтвердить |
| Условия оплаты: | Т/Т, Вестерн Юнион |
| Поставка способности: | 5000 шт/месяц |
|
Подробная информация |
|||
| Власть: | 300 Вт | Световая эффективность: | 100-120lm/w |
|---|---|---|---|
| Светодиодный чип: | ЛЮМИЛЕДЫ SMD (LM-80) | Угол луча: | 60° |
| Цветовая температура: | 5000K | IP-рейтинг: | IP65 |
| Маркировка взрывобезопасности: | Ex db mb IIB T6 - IP65 - WF2 | молниезащита: | 6KV |
| Материал: | Алюминий ADC12 + закаленное стекло | Заканчивать: | Желтый |
| Сертификация: | ATEX, CE, ROHS, CCC | Продолжительность жизни: | 50 000 часов |
| Рабочая температура: | от -40°С до +60°С | ||
| Выделить: | 300W LED Explosion Proof Flood Light,ATEX IIB T6 IP65 Flood Light,Wall Mount Explosion Proof Lighting |
||
Характер продукции
300W LED Explosion Proof Flood Light - 60° Wall Mount Process Pipe Rack Yellow RFEPL8280 Series
The RFEPL8280-300W-WL60 is a 300W LED explosion proof flood light from the RFEPL8280 series, delivering 36000lm luminous flux with 120lm/W efficiency. ATEX Ex db mb IIB T6 certified with IP65 WF2 protection, this Yellow finish floodlight features LUMILEDS SMD chip technology (LM-80 tested), 6KV lightning protection, and all-stainless-steel hardware passing 500-hour salt spray testing.
Key Features
- LUMILEDS SMD Technology - LM-80 tested premium LED chips delivering 120lm/W with CRI ≥80 and 50,000-hour L70 lifespan
- ATEX Ex db mb IIB T6 Certified - Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres, temperature classes T1-T6
- 60° Beam Configuration - 60° Wall Mount Process Area for precise light distribution
- Yellow Paint Finish - Durable powder coat finish with 500-hour salt spray certification on all stainless steel hardware
- Die-Cast Fin Heat Dissipation - Advanced aluminum substrate thermal management for reliable 300W continuous operation
- 6KV Lightning Protection - Built-in surge suppression for exposed outdoor industrial installations
- 180° Adjustable Bracket - Flexible angle adjustment with six mounting configurations available
- IP65 Waterproof WF2 - Sealed against dust and water jets with corrosion-resistant design
- Universal AC 100-277V - Power factor ≥0.95, compatible with global electrical systems
- CE, ROHS, CCC Certified - Full international compliance for global deployment
Applications
Suitable for Wall-mounted process unit illumination, pipe rack lighting:
- Oil extraction, refining and petrochemical processing
- Offshore platforms, FPSOs and drilling rigs
- Chemical storage, mixing and manufacturing facilities
- Electric power generation and distribution stations
- Military and defense hazardous installations
Technical Specifications
| Model Number | RFEPL8280-300W-WL60 |
| Item No. | RFEPL8280 |
| Power | 300W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Beam Angle | 60° |
| CRI | ≥80 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum ADC12 + Tempered Glass |
| Finish | Yellow |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
The RFEPL8280 series delivers industrial-grade hazardous area illumination with LUMILEDS LED efficiency and ATEX-certified safety. Every unit is factory-tested for explosion-proof integrity and photometric performance.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
